Description

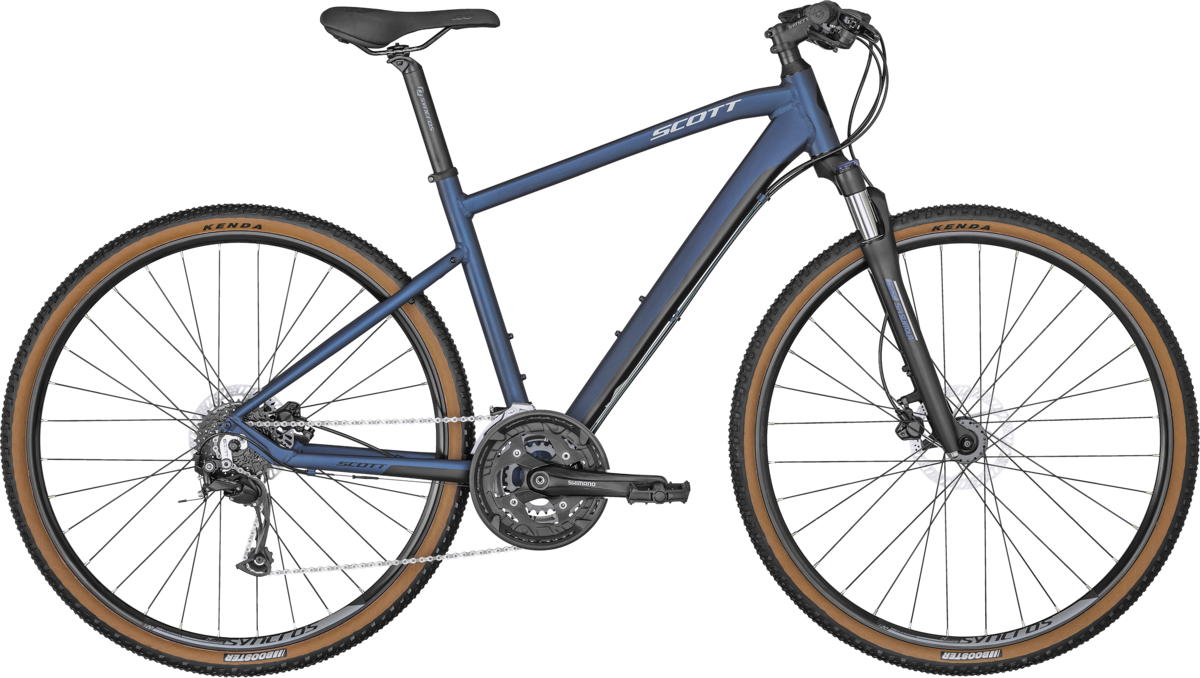

scott cross rennrad Scott Sub Cross 30 MenKEY FEATURES: Sub Cross Men Lady Alloy Frame SR Suntour NEX HLO 63mm Fork Shimano Alivio M3100 27 Speed Tektro Hyd. Brakes Kenda Booster The SCOTT SUB Cross 30 emphasizes comfort and convenience for touring and transportation. Equipped with a lockout fork and Syncros components, the SUB Cross is set up perfectly for your excursions. Please note that bike specifications are subject to change without prior notice Specs Frame Sub Cross Alloy 6061, Custom
KEY FEATURES:
- Sub Cross Men/Lady Alloy Frame
- SR Suntour NEX HLO 63mm Fork
- Shimano Alivio M3100 27 Speed
- Tektro Hyd. Brakes
- Kenda Booster
The SCOTT SUB Cross 30 emphasizes comfort and convenience for touring and transportation. Equipped with a lockout fork and Syncros components, the SUB Cross is set up perfectly for your excursions.
Please note that bike specifications are subject to change without prior notice
Specs
| Frame | Sub Cross Alloy 6061, Custom butted tubing, Sub Cross Men/Lady geometry, SCOTT urban kit ready |
|---|---|
| Fork | SR Suntour NEX HLO, Hyd. Lockout, 63mm travel |
| Rims | Syncros X-20 Disc, 32H, black |
| Hubs | Front: Formula DC-19 FQR Disc Rear: Formula DC-25 RQR Disc |
| Spokes | 14g, stainless, black |
| Tires | Kenda Booster, 700x45C, 30 TPI |
| Bottom Bracket | Shimano BB-ES300, Cartridge Type |
| Crankset | Shimano FC-T4010, 48x36x26, w/CG |
| Shifters | Shimano SL-M2010-9, R-fire plus, w/gear indicator |
| Front Derailleur | Shimano FD-M370, 34.9mm |
| Rear Derailleur | Shimano Alivio RD-M3100, 27 Speed |
| Cassette/Freewheel | Shimano CS-HG200-9 11-32T |
| Chain | KMC X9 |
| Brakes | Tektro HDM275 Hydr. Disc |
| Rotors | Tektro, 6 bolts, F&R 160mm |
| Handlebars | Syncros 3.0, 31.8, Tbar/660mm/9° bend |
| Stem | Syncros 3.0, 7°, Black |
| Headset | Syncros OE Press Fit, 1 1/8" OD 50mm, ID 44mm |
| Seatpost | Syncros 3.0, 31.6mm, 350mm, Black |
| Saddle | Syncros UC3.0, UC3.0W |
| Pedals | Feimin FP-873-ZU |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Dark Blue / Small | 192820613413 | 286594006 |
| Dark Blue / Medium | 192820613420 | 286594008 |
| Dark Blue / Large | 192820613437 | 286594010 |
| Dark Blue / X-Large | 192820613444 | 286594012 |
| Dark Blue / XX-Large | 192820613451 | 286594014 |
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° |
| B | HEAD TUBE LENGTH | 105.0 MM | 125.0 MM | 145.0 MM | 165.0 MM | 185.0 MM |
| C | TOP TUBE HORIZONTAL | 567.0 MM | 577.0 MM | 592.0 MM | 608.0 MM | 620.0 MM |
| D | STANDOVER HEIGHT | 767.0 MM | 793.0 MM | 817.0 MM | 847.0 MM | 876.0 MM |
| E | BB OFFSET | 56.0 MM | 56.0 MM | 56.0 MM | 56.0 MM | 56.0 MM |
| F | BB HEIGHT | 406.0 MM | 406.0 MM | 406.0 MM | 406.0 MM | 406.0 MM |
| G | WHEEL BASE | 1,078.0 MM | 1,084.0 MM | 1,097.0 MM | 1,110.0 MM | 1,123.0 MM |
| H | BB CENTER TO TOPTUBE CENTER | |||||
| I | BB CENTER TO TOP OF SEATTUBE | 450.0 MM | 480.0 MM | 510.0 MM | 550.0 MM | 590.0 MM |
| J | SEAT ANGLE | 73.0 ° | 72.5 ° | 72.3 ° | 72.0 ° | 72.0 ° |
| K | CHAINSTAY | 456.0 MM | 456.0 MM | 456.0 MM | 456.0 MM | 456.0 MM |
| L | REACH | 388.3 MM | 386.8 MM | 393.5 MM | 399.8 MM | 405.6 MM |
| M | STACK | |||||
| N | STEM LENGTH | 80.0 MM | 90.0 MM | 90.0 MM | 100.0 MM | 100.0 MM |
| 0 | TRAIL |
